Description

SPECIFICATIONS

Brand Name: SURPASS

Maximum Power Per Channel: 20W

Origin: Mainland China

Package: Yes

Channels: 2 (2.0)

Certification: CE

Model Number: PW220Q

Size: 1.77 inch

Display: LRC display

Output Power: 2x20W

Bluetooth: 5.0

Bluetooth Distance: 10m

Power Supply Mode: AC110-250V

Output Impedance: 8ohm

Audio Signal-to-Noise Ratio: ≥98dB

FM Range: 87.5-108MHz

Radio Function: Built-in digital automatic FM radio, 30 stations

Product size: 86*86*10mm

Support Wi-Fi: no

Support USB: yes

Support TF card: yes

Choice: yes

semi_Choice: yes

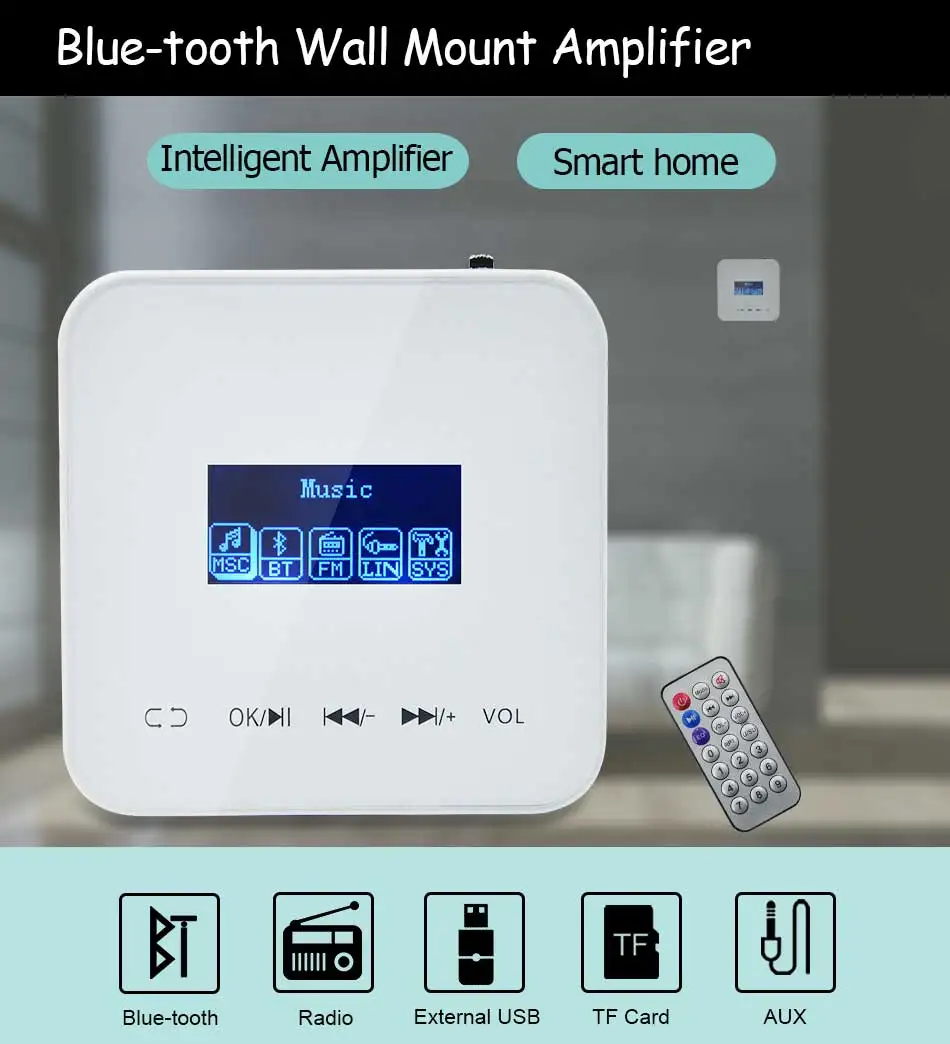

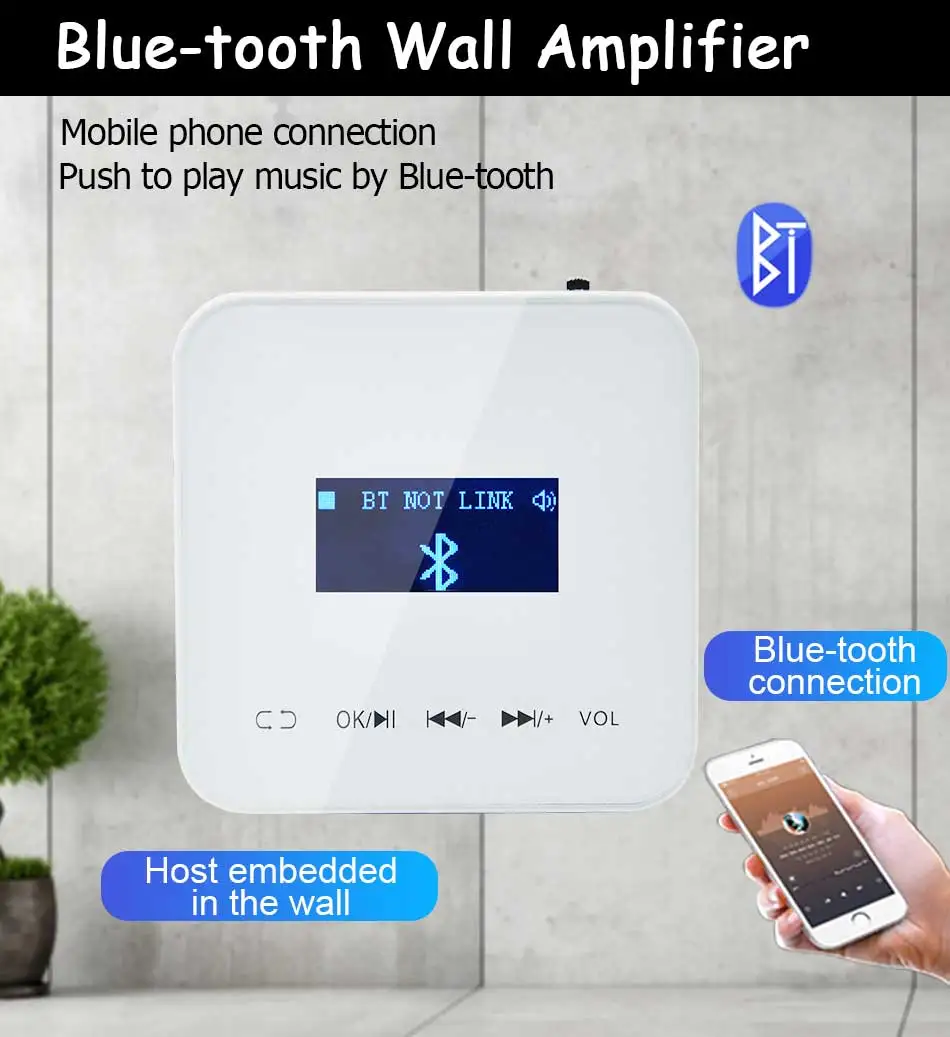

Smart Home Bluetooth FM Mini Display 2x20W in-Wall Panel Audio Water Proof Compatible IR Remote Control Home Theater Bathroom

SPECIFICATIONS:

●   Supplied with 86mm standard box and IR remote control handset

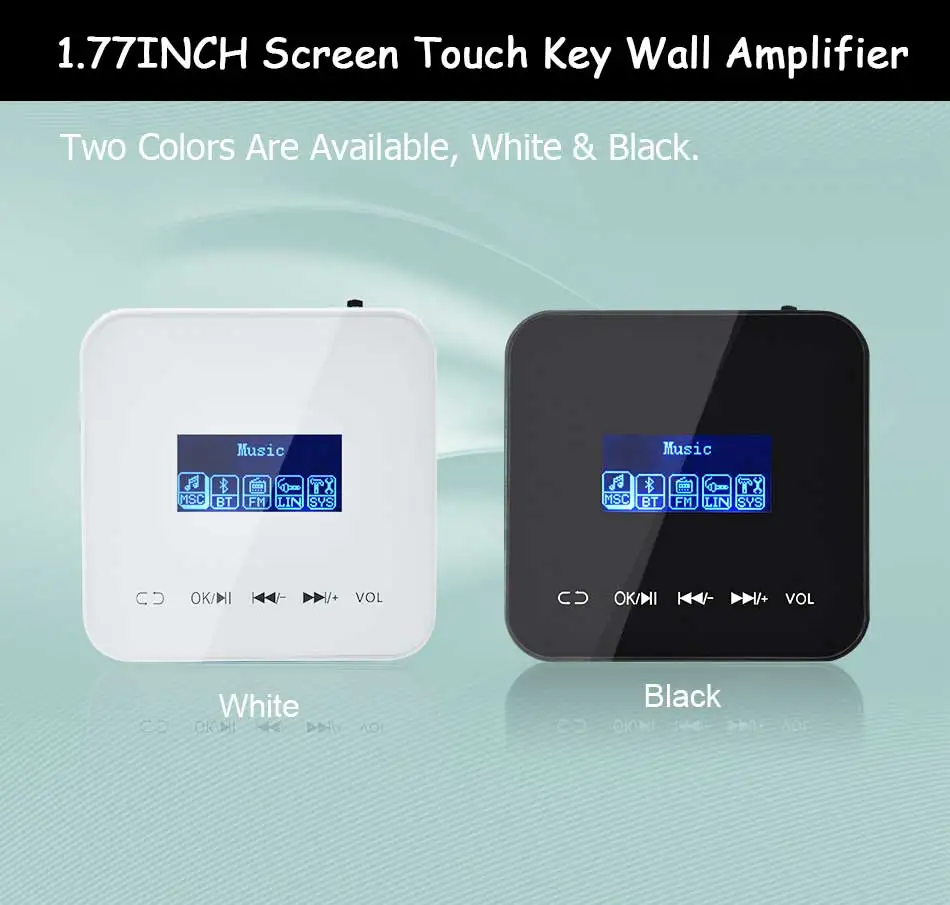

●   Touch Key 1.77” LRC display

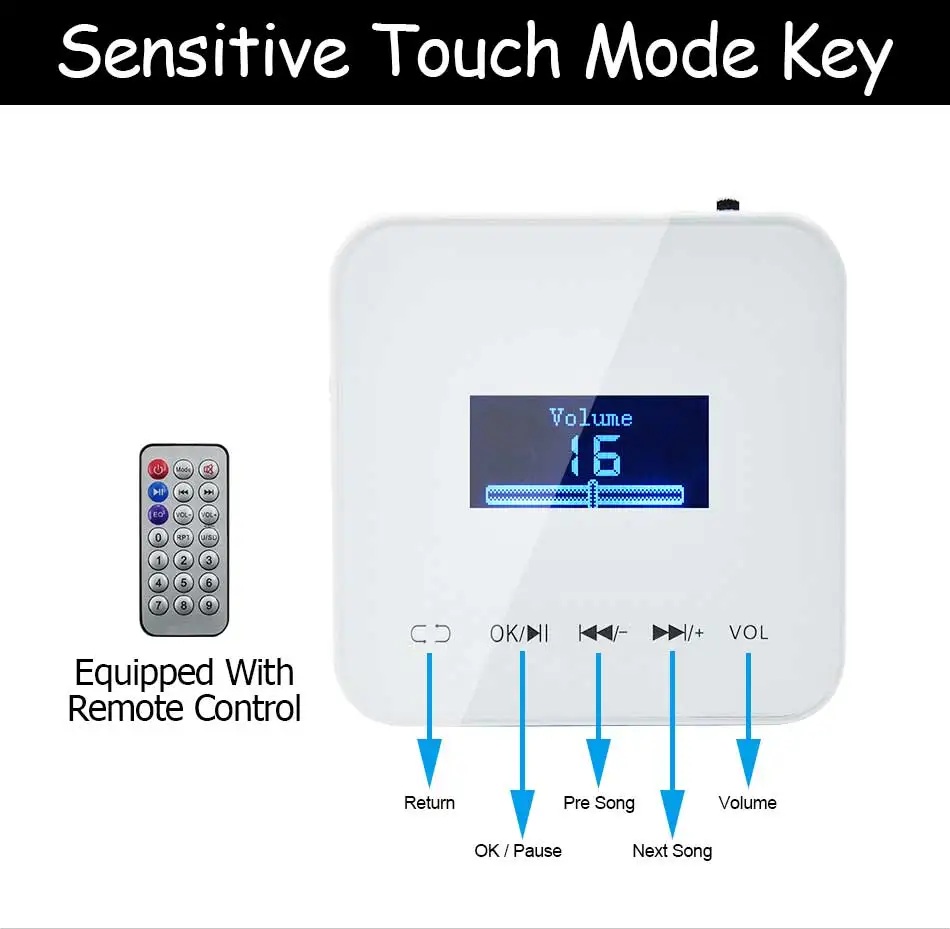

●   Wipe clean touch control panel
●   Built in USB/microSD player and FM tuner
●   Bluetooth, Audio out, AUX In connectivity

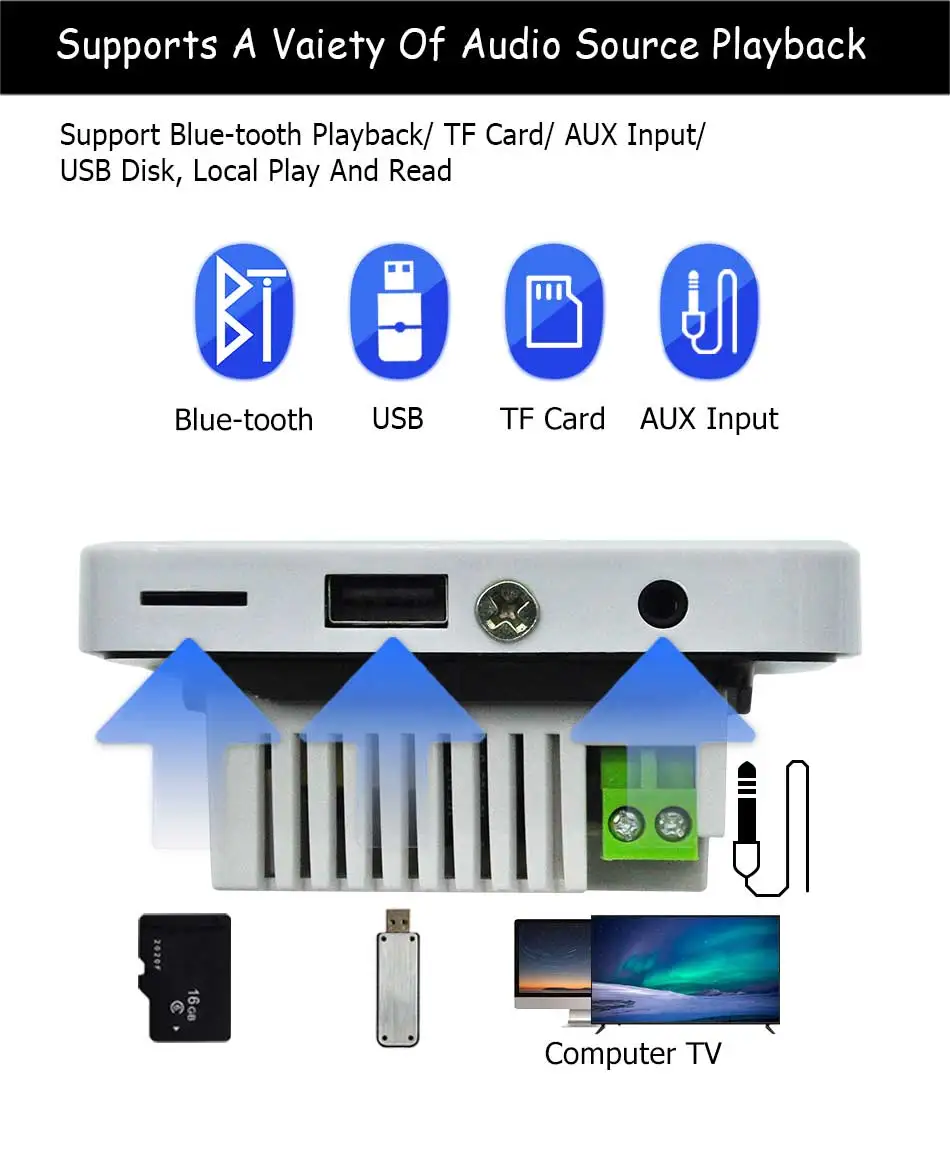

●   Audio source: USB / microSD player, AUX In, FM tuner and Bluetooth receiver
●   Auxiliary input: Left + right line in (Euroblock terminals)

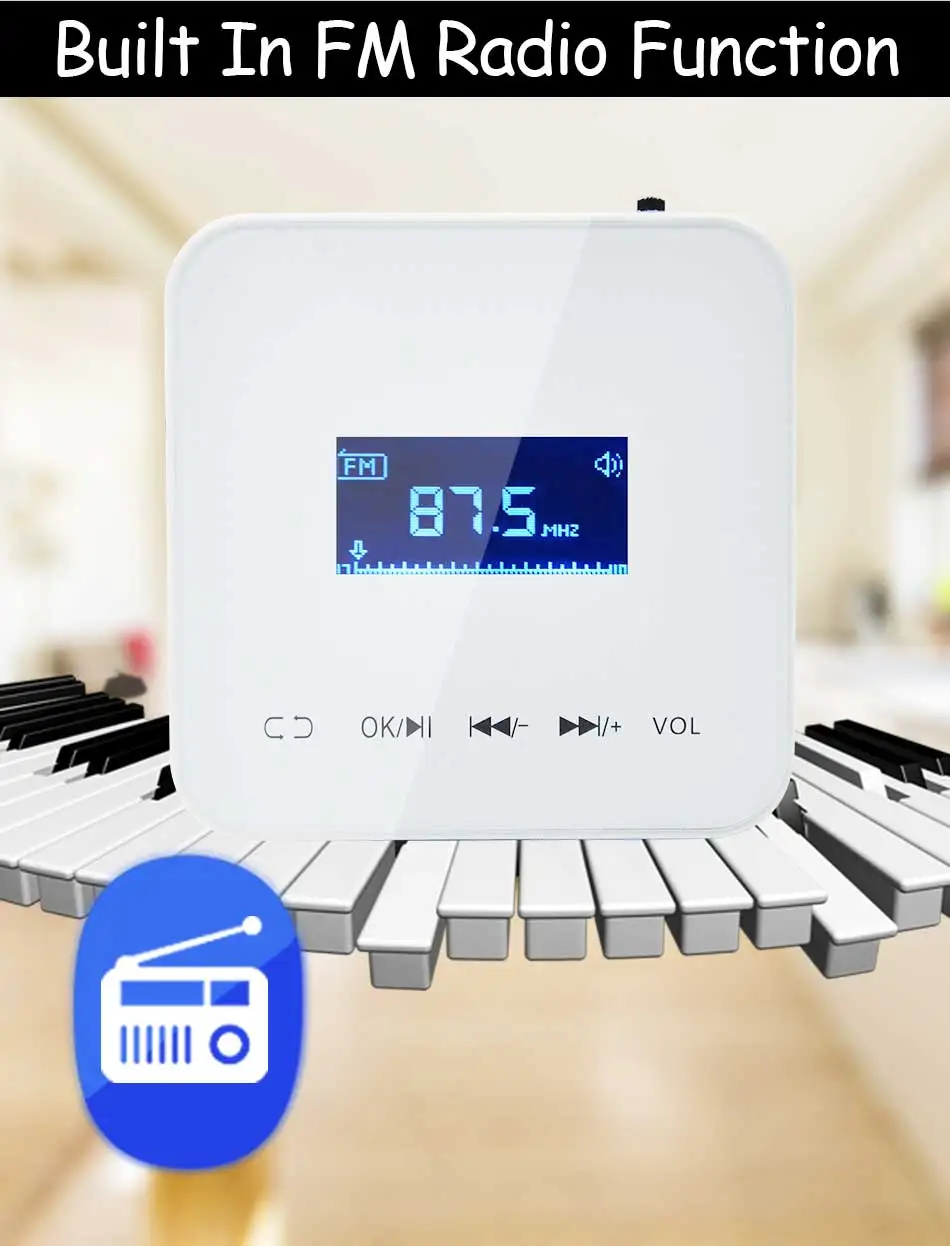

●   Radio Function: Builit-in digital automatic FM radio,30 stations
●   Bluetooth range: Up to 10m
●   Bluetooth version: 5.0
●   Trigger Remote: playback and door bell (Euroblock terminals)

FEATURES:

●
Power supply: 100-250V AC, 50/60Hz (Euroblock terminals)

●
Output: 2 x 20W @ 8 ohms (Euroblock terminals)

●
Please ensure that loudspeaker load is never less or greater than 4-8 ohms per channelAudio format: mp3, wma, wav

●
Frequency response: 20Hz – 20kHz (±3dB)

●
THD: <0.03% at 1kHz, 1W

●
S/N ratio: >98dB

●
FM: tuning range 87.5 – 108MHzMounting depth: 47mm (with adequate ventilation), 57mm back box supplied

●
Dimensions: 86 x 86 x 10mm (amplifier)

●
Weight: 150g (amplifier)

PACKAGE INCLUDED:

1 x Smart Bluetooth Wall Ampliflifier
1 x Remote Control
1 x screw set
1 x Bracket

1 x Mount box

KINDLY NOTE:

One way Bluetooth, the bluetooth of this device can only be connected to mobile phones/tablets and other bluetooth devices who’s Bluetooth function is two way to play and control the music, CAN NOT be connected to the bluetooth ceiling speakers or TV(one way bluetooth) by bluetooth directly.
